Set Up an eDynamo

Versatile Payment Acceptance From Anywhere

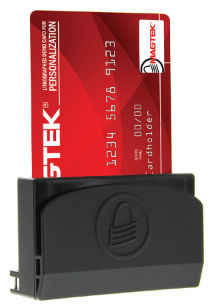

The MagTek eDynamo gives you the flexibility to securely accept a variety of payment card technologies, including magnetic stripe cards or EMV chip cards. The eDynamo works with iOS, Android, and Windows devices and can connect wirelessly via Bluetooth Low Energy (LE) (iOS, Android, and Windows systems) or via USB (Windows only)—giving merchants the ability to accept payments on-the-go or while docked to a stationary computer.



The eDynamo supports the following operating systems and corresponding connection types:

Device Connection Type Operating System
Windows PC USB Windows 10
Windows Tablet

USB, Bluetooth LE*

Microsoft Surface Go (works on all tablets that run a supporting OS)
iPad and iPhone Bluetooth LE* iOS (11.0 or newer)
Android Phones and Tablets Bluetooth LE* Android (6.0 or newer)

*Requires installation of the MagTek Wedget keyboard application. Select the Wedget keyboard prior to swiping or dipping the credit card. Additionally, to use the Wedget keyboard with eDynamo, you must submit a ticket to Forte Technical Support to get your device added to MagTek's Wedget database.



Window OS

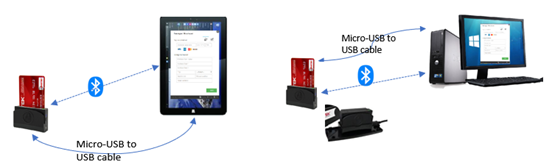

Merchants using Windows PCs or Tablets can connect via Bluetooth or USB to process swipe and EMV credit card transactions. You can use the eDynamo with Forte Checkout, Dex*, BillPay*, or your own custom POS application.

*Supports USB connections only.

Before connecting your device, you first must download the MagTek SCRA Web API Host Service (MTSCRA) (Downloads > Drivers > eDynamo Windows Installer). The MTSCRA service is an API that allow Windows to detect the eDynamo connected to a device. After downloading the file, complete the following steps:

  1. Extract the file and run the MTSCRA WEBAPI Setup Wizard (EDynamo.exe) with Admin rights.
  2. Once the service is installed, ensure the service is running by checking under Windows Services that the MagTek SCRA WEBAPI Host Service is running:

Once the service is installed, connect your Windows device to the eDynamo via the micro-USB cable or via a Bluetooth connection (use the same process as WiFi connections). The Forte applications listed above will automatically detect the device. If your Windows tablet does not have compatible ports a micro-USB cable, you will need to use a connector.



iOS and Android OS

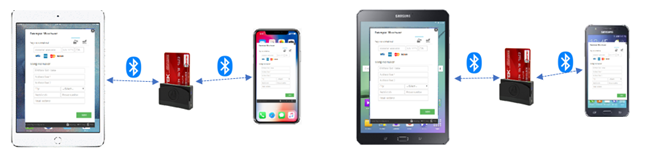

Merchants using iOS or Android devices can connect to their eDynamo via the Bluetooth Low Energy connection.

For this setup you will need to download and install the MagTek Wedget keyboard extension on the device. The Wedget is a keyboard that reads dip or swipe data and will pass it to the POS web application. The POS web application will then parse the data and send it to Forte for processing. You can use this setup to collect payments in Forte Checkout or your own custom application. Developers making custom applications can use either the Wedget extension or a native MagTek API/SDK to connect to an eDynamo via Bluetooth from a mobile device. Download the Wedget application from the applicable store:

OS Link
iOS

https://apps.apple.com/us/app/wedget/id1476413519

Android https://play.google.com/store/apps/details?id=com.magtek.mobile.android.mfxkeyboard



With a relatively easy setup, you can use your eDynamo terminal with the following Forte applications. NOTE: Merchants are required to create EMV-compliant receipts for all EMV transaction sales and authorizations. See the "EMV-Compliant Receipt" section below for format requirements.



Forte Checkout

Before testing your eDynamo, you must configure Forte Checkout to ensure it connects to the device and captures the appropriate data. To do so, you must include the following parameters in your button code:

swipe=edynamo
connection_type=usb or connection_type=ble

BillPay and Dex

Currently, BillPay and Dex only support wired connections to an eDynamo device via the micro-USB cable. After installing the MagTek SCRA Web API Host Service and connecting the device to the computer, BillPay and Dex will automatically detect the device and you can begin transaction testing.



Merchants can integrate their custom POS applications to work with the eDynamo using the Wedget keyboard or an applicable API/SDK from Magtek. After receiving the EMV or swipe data from the device, the merchant sends it on to Forte for processing using appropriate AGI or REST fields.

For EMV transactions, all transaction requests must include tags DFDF56 and DFDF59 from the ARQC field (e.g., card_emv_data=DFDF56|DFDF59), which returns from a card dip when using MagTek's Web API. For example, the following displays sample ARQC data that displays after tag DFDF59:

DFDF598200025555………X1ACDFDF560A9011880B43A773000DEDDFDF5701

For tag DFDF56,

  • Use the first 2-digit hexadecimal number after the tag (e.g., 0A) to determine the value of X. In this example, X=10 (as 0A in hex = 10 in decimal).
  • The value of tag DFDF56 is the 2*X characters after the first 2-digit hexadecimal number (i.e., 0A).

Therefore, the value of the DFDF56 tag in this example is 20 characters (2*10=20) after 0A (i.e., DFDF56=9011880B43A773000DED)



For tag DFDF59,

  • Skip the first two characters after the DFDF59 tag. In this example, you would skip the 82.
  • Use the next 4-digit hexadecimal number (e.g., 0002) to determine the value of X. In this example X=2 (as 0002 in hex = 2 in decimal).
  • The value of tag DFDF59 is 2*X characters (2*2=4) after the 4-digit hexadecimal number (e.g., 0002).

Therefore, the value of the DFDF59 tag in this example is 4 characters after 0002 (i.e., DFDF59=5555).

Sending EMV Data to Forte

Merchants can use either Forte's Advanced Gateway Interface or REST API to EMV eDynamo data to Forte. Along with the other required parameters for each request, use the following to pass in EMV data:

Integration Method Parameter Description
AGI

pg_cc_enc_decryptor=21079802, pg_cc_enc_emv_data=DFDF56|DFDF59

The pg_cc_enc_decryptor field identifies the device part number used in the transaction. For eDynamo, this part number is 21079802.

The pg_cc_enc_emv_data field passes in the EMV data included in tags DFDF56 and DFDF59 of the ARQC field (see above).

REST

card.card_reader=21079802, card.card_emv_data=DFDF56|DFDF59



Both required REST parameters are part of the card object. The card_reader field identifies the device part number used in the transaction. For eDynamo, this part number is 21079802.

The card_emv_data field passes in the EMV data included in tags DFDF56 and DFDF59 of the ARQC field (see above).

Sending Swipe Data to Forte

Like EMV data, card swipe data can be passed to Forte using either Forte's Advanced Gateway Interface or REST API. To conform with the EMV standard, chip cards should always be dipped and should only be swiped if the terminal cannot read the chip data. Use MagTek's Web API to determine if a credit card has a chip. Chip cards always have a card.service_code that starts with 2 or 6. To ensure a fallback swipe can be performed, include pg_fallback_swipe=1 (AGI) or card.fallback_swipe=true (REST) in your transaction request message.

Swipe data contains the following information formatted with pipes:

[Track1Masked][Track2Masked]|0600|[Track1]|[Track2]||[MagnePrintStatus]|[MagnePrint]|[Firmware]|[DeviceSerial]|[KSN]|1F41||1000~

Maintain this formatting when sending swipe data to Forte along with the other required parameters for each request:

Integration Method Parameter Description
AGI

pg_cc_enc_decryptor=21079802, pg_cc_enc_swipe_data=Formatted swipe data

The pg_cc_enc_decryptor field identifies the device part number used in the transaction. For eDynamo, this part number is 21079802.

The pg_cc_enc_swipe_data field passes in the swipe data formatted with pipes.

REST

card.card_reader=21079802, card.card_data=Formatted swipe data



Both required REST parameters are part of the card object. The card_reader field identifies the device part number used in the transaction. For eDynamo, this part number is 21079802.

The card_data field passes in the swipe data formatted with pipes.

Merchants are required to create EMV-compliant receipts for all EMV transaction sales and authorizations. Data required to print the receipt can be found in the transaction response data from the Forte Checkout callback or the REST or AGI response objects. Fields displayed in angle brackets (< >) contain the callback field name from Forte Checkout and fields displayed in square brackets ([ ]) contain the response field names from the AGI or REST response messages. Note that these are the minimum requirements; custom formatting is allowed. Below are sample EMV responses from different integration methods as well as a sample EMV receipt.

Sample AGI EMV Response

                            pg_response_type=A
pg_response_code=A01
pg_response_description=TEST APPROVAL
pg_authorization_code=123456
pg_trace_number=7D2A316E-08FA-4418-B06F-80FEEC53C697
pg_avs_code=Y
pg_cvv_code=M
pg_merchant_id=176645
pg_transaction_type=10
ecom_billto_postal_name_first=Test
ecom_billto_postal_name_last=User
pg_total_amount=1.0
pg_cc_enc_decryptor=21079802
pg_emv_receipt_data=application_label:VISA DEBIT|entry_mode:CHIP|CVM:5E0000|AID:A0000000031010|TVR:8000008000|IAD:06010A03A08000|TSI:6800|ARC:
endofdata


Sample REST EMV Response

                            stdClass Object
(
	[transaction_id] => trn_d675487d-3fb6-413d-9e9c-e3e69f6307c5
	[location_id] => loc_xxxxxx
	[action] => sale
	[authorization_amount] => 2
	[entered_by] => ce71ece4f900dcb11b30e511b0b97ea6
	[billing_address] => stdClass Object
		(
			[first_name] => Test
			[last_name] => User
			[physical_address] => stdClass Object
				(
					[street_line1] => 123 Main Street
					[postal_code] => 12345
				)
		)
	[response] => stdClass Object
		(
			[environment] => live
			[response_type] => A
			[response_code] => A01
			[response_desc] => APPROVED
			[authorization_code] => 074457
			[avs_result] => N
			[cvv_result] => P
			[emv_receipt_data] => application_label:VISA DEBIT|entry_mode:CHIP|CVM:5E0000|AID:A0000000031010|TVR:8000008000|IAD:06010A03A08000|TSI:6800|ARC:
		)
	)


Sample Forte Checkout EMV Response

                            {
	"event":"success",
	"method":"sale",
	"request_id":"d51906d5-5fdf-48e0-e551-5992217e48a",
	"response_code":"A01",
	"response_description":"TEST APPROVAL",
	"trace_number":"fc56ee93-d09e-49c7-91db-3e9c6f1265b9",
	"authorization_code":"8RO895",
	"total_amount":"1",
	"avs_code":"Y",
	"order_number":"OrderNumber",
	"version_number":"1.0",
	"last_4":"1365",
	"method_used":"disc",
	"hash_method":"md5",
	"billing_name":"SHONES GEORGE",
	"billing_street_line1":"500 W. Bethany Drive",
	"billing_street_line2":"Suite 200",
	"billing_locality":"Allen",
	"billing_postal_code":"75013",
	"billing_country":"US",
	"billing_email_address":"[email protected]",
	"name_on_card":"SHONES GEORGE",
	"expire_month":"02",
	"expire_year":"2023",
	"signature":"bdb29857d36590cac577471fa1b6afa2",
	"utc_time":"637274902251420000",
	"terminal_number":"B48F051032019AA",
	"emvReceiptData":"application_label:Discover Credit|entry_mode:CHIP|CVM:1E0300|AID:A0000001523010|TVR:8000008000|IAD:0105A000034000001E030000000000000000|TSI:6800|ARC:"
}

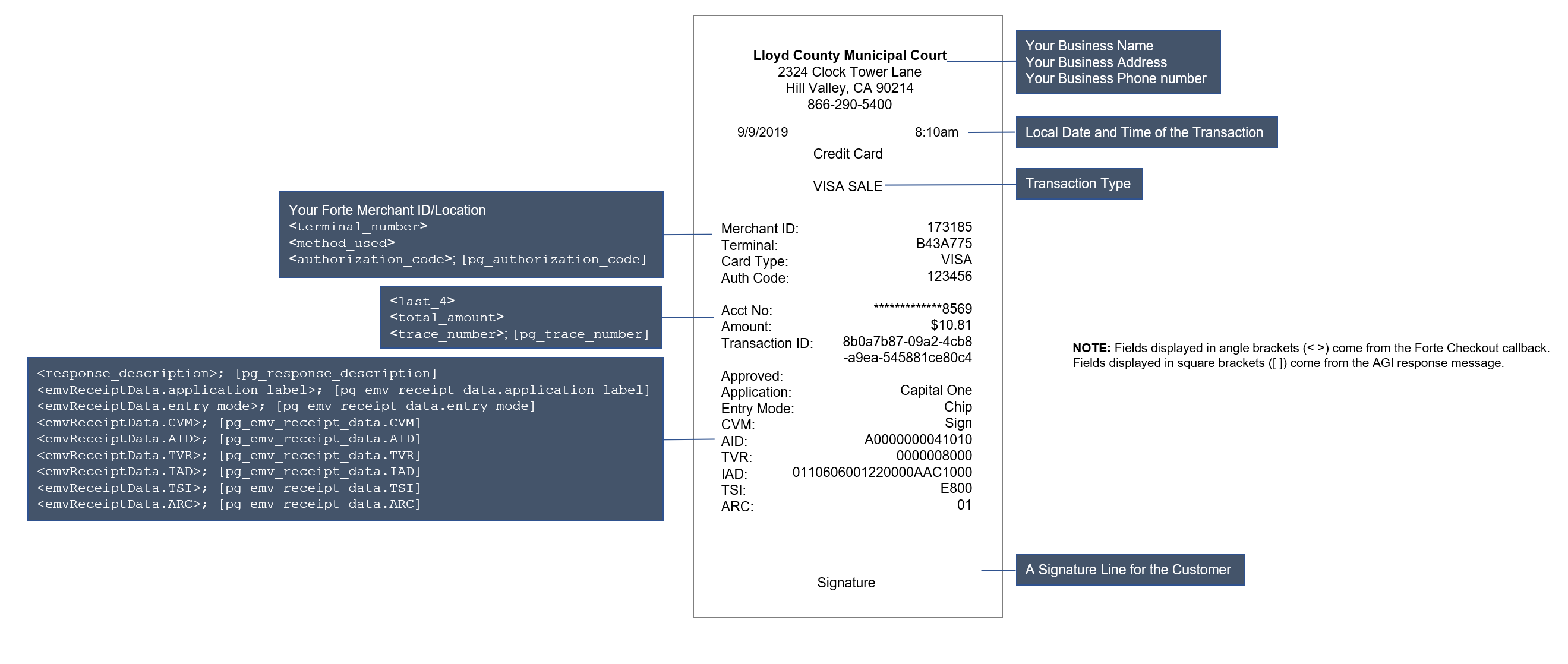

Sample EMV Receipt

Receipts must contain all the below elements:

Receipt Format Callback Response Field or Description
Sale Transaction Type
CSG Forte Your Business Name

500 West Bethany, Suite 200

Allen, TX 75013

Your Business Address
866-290-5400 Your Business Phone
9/9/2019 8:10am The Local Date and Time of the Transaction
Merchant ID: 173185 Your Forte Merchant ID/Location
Terminal: B43A775 <terminal_number>
Card Type: VISA <method_used>
Auth Code: 123456 <authorization_code>; [pg_authorization_code]
Acct No: *************8569 <last_4>
Amount: 10.81 <total_amount>
Transaction ID: 8b0a7b87-09a2-4cb8-a9ea-545881ce80c4 <trace_number>; [pg_trace_number]
Approved <response_description>; [pg_response_description]
Application          Capital One <emvReceiptData.application_label>; [pg_emv_receipt_data.application_label]
Entry Mode         Chip <emvReceiptData.entry_mode>; [pg_emv_receipt_data.entry_mode]
CVM                   Sign <emvReceiptData.CVM>; [pg_emv_receipt_data.CVM]
AID                     A0000000041010 <emvReceiptData.AID>; [pg_emv_receipt_data.AID]
TVR                    0000008000 <emvReceiptData.TVR>; [pg_emv_receipt_data.TVR]
IAD                      0110606001220000AAC1000 <emvRceiptData.IAD>; [pg_emv_receipt_data.IAD]
TSI                       E800 <emvReceiptData.TSI>; [pg_emv_receipt_data.TSI]
ARC                     01 <emvReceiptData.ARC>; [pg_emv_receipt_data.ARC]
x____________________________________________

                                        Signature
A Signature Line for the Customer
